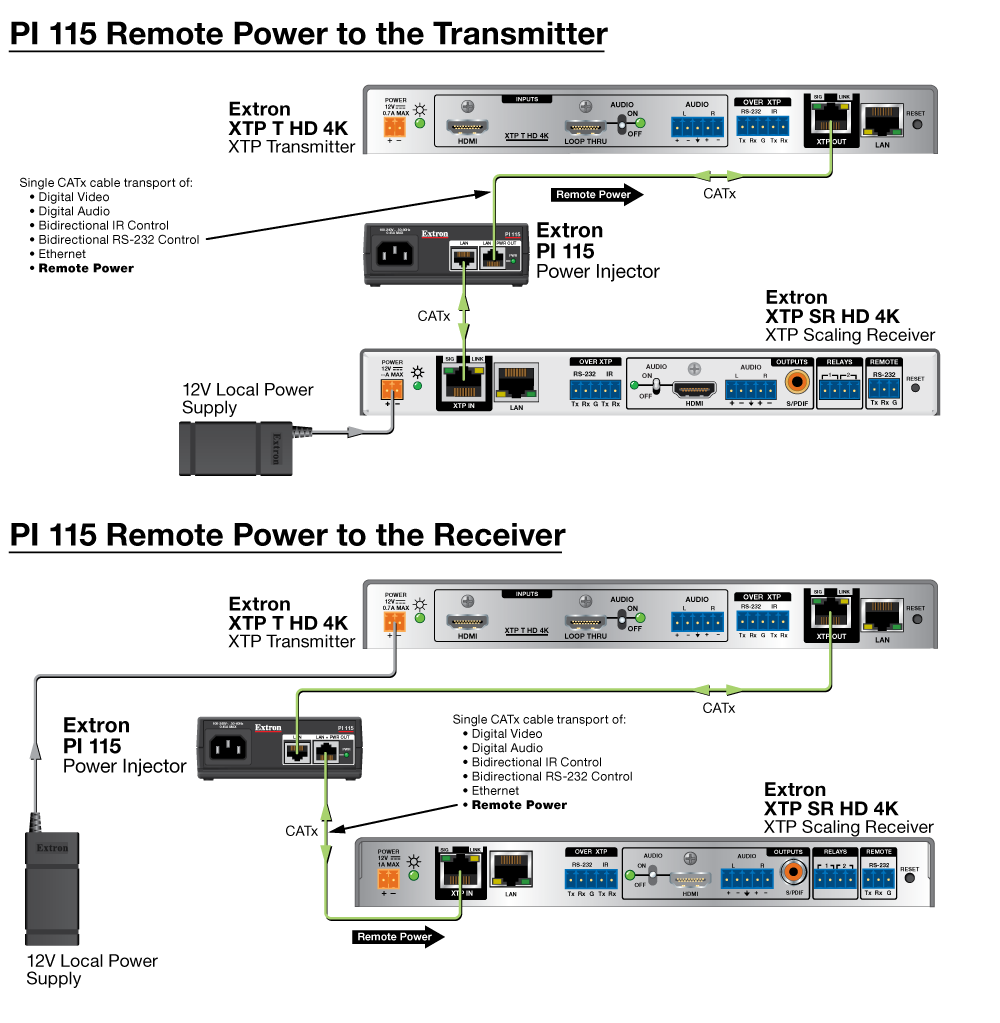

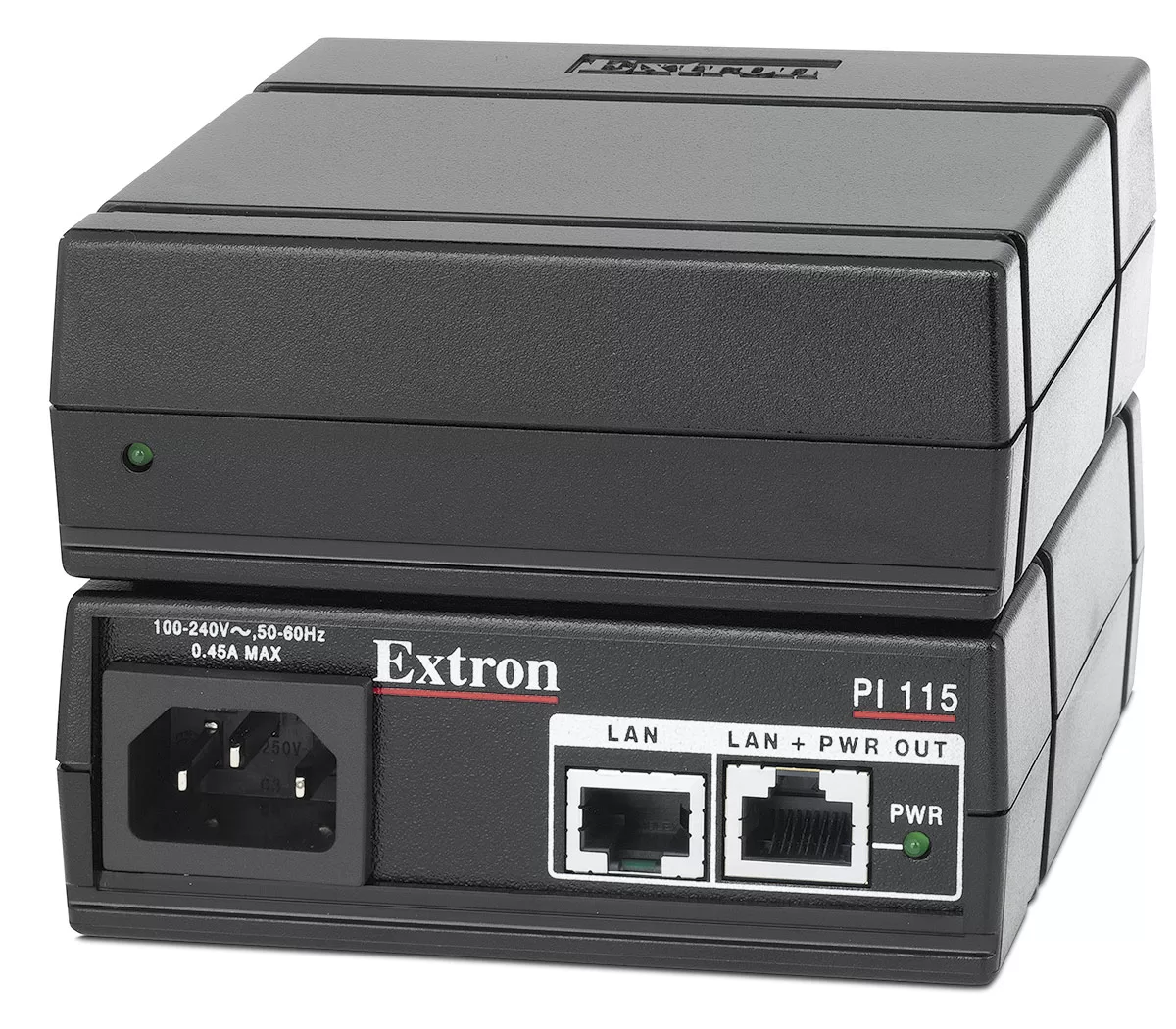

The Extron PI 115 is a single port power injector that provides power to any PoE 802.3af compatible device, eliminating the need for a local power supply. Designed specifically for the high data rates of XTP Systems®, signal quality is unaffected when using the power injector. It can be installed anywhere within a signal path, providing design flexibility as well as in point to point applications. The compact enclosure of the power injector enables it to be installed in small spaces and the included Extron ZipClip™ 200 mounting kit provides installation flexibility.
The unique 1U, quarter rack width enclosure features threaded inserts and recessed grooves for zip ties, allowing for easy mounting onto Extron rack shelves or oddly shaped supports, such as projector poles and rack rails. In addition, the patented Extron ZipClip 200 mounting kit offers further versatility to quickly and securely mount the PI 115 within lecterns, beneath tables, or into many other tight spaces.
Features

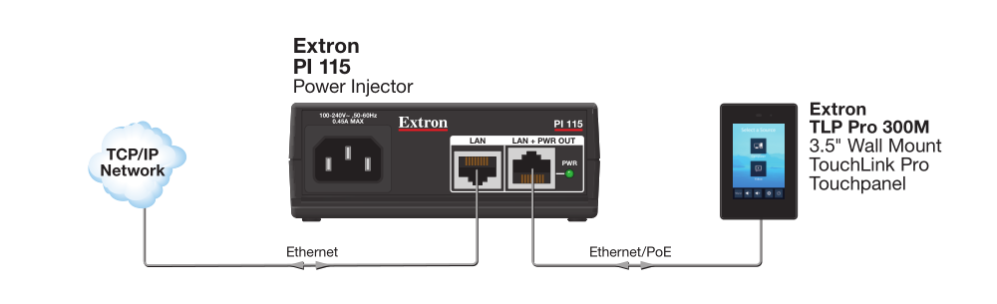

- Supplies the required power to compatible PoE 802.3af devices and select XTP devices — Provides power for XTP transmitters and receivers, and Extron control systems, as well as any other PoE compatible product, eliminating the need for a local power supply.
- Designed specifically for the high data rates of XTP Systems
- No impact on signal quality — Utilization of the power injector does not impact video, audio, bidirectional RS-232 and IR, and Ethernet signal quality.
- Patented ZipClip™ 200 mounting kit included:
– Mounts securely on a variety of surfaces, including rack rails, tables, lecterns, projector poles, and table legs
– Wire tie slots for proper strain relief and dressing of excess cable

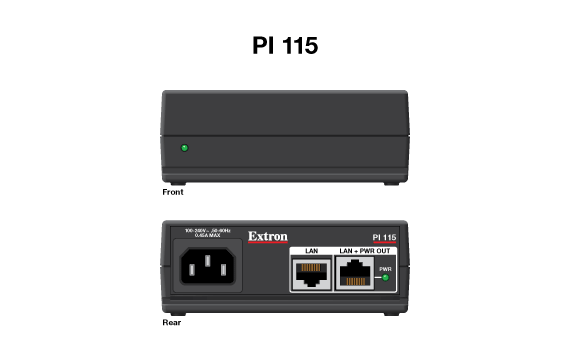

– Quick release tab allows for easy installation and removal - Real-time status LEDs for troubleshooting and monitoring — The front LED is for status of AC power input. The rear LED indicates if power is delivered to the device.
- UL/c-UL listed and CE compliant
- 1U, quarter rack width enclosure
- Extron Everlast™ Power Supply — Provides worldwide power compatibility, with high-demonstrated reliability and low power consumption for reduced operating cost
- Extron Everlast™ Power Supply is covered by a 7 year parts and labor warranty
| PI 115 Specifications | |||
| General | |||
|---|---|---|---|
| Connectors | 1 RJ-45 female connector for pass-through input 1 RJ-45 female connector for pass-through and power output |
||
| Ethernet standards | 10/100/1000Base-T | ||
| Power supply | Internal Input: 100-240 VAC, 50-60 Hz |
||
| Power input | |||
| No load | 100 VAC to 240 VAC, 50-60 Hz, 0.45 watts | ||
| Full power | 100 VAC to 240 VAC, 50-60 Hz, 19.68 watts, 0.39 A maximum | ||
| Power output | 48 VDC, 0.35 A, 16.8 watts Compatible with 802.3af PoE devices |
||
| Efficiency | |||
| At full load, 230 VAC | 86.21% | ||
| At full load, 100 VAC | 85.77% | ||
| Power consumption | |||
| No load | 100 VAC to 240 VAC, 50-60 Hz, 0.25 watts | ||
| Full load | 100 VAC to 240 VAC, 50-60 Hz, 19.68 watts | ||
| Temperature/humidity | Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
||
| Cooling | Convection, no vents | ||
| Mounting | |||
| Rack mount | Yes, with optional 1U rack shelf with the included ZipClip 200 mounting clip or by securing to rack rails with tie wraps | ||
| Furniture mount | Yes, with the included ZipClip 200 mounting clip | ||
| Pole mount | Yes, using tie wraps | ||
| Enclosure type | High impact, high temperature plastic | ||
| Enclosure dimensions | 1.7″ H x 4.3″ W x 4.5″ D (1U high, quarter rack wide) (4.2 cm H x 11.0 cm W x 11.4 cm D) |
||
| Product weight | 0.6 lb (0.3 kg) | ||
| Regulatory compliance | |||
| Safety, EMI/EMC | CE, C-tick, c-UL, UL, CISPR 32, CISPR 35, FCC Class B, NEC Class 2 | ||
| Environmental | Complies with the appropriate requirements of RoHS, WEEE. | ||
| Product warranty | 7 years parts and labor | ||
|
|||
Everlast Power Supplies Brochure
https://www.extron.com/download/files/brochure/everlast_bro_revA.pdf
PI 115 Installation Guide
https://media.extron.com/public/download/files/userman/68-3699-01_B_pi_115.pdf
| Compatible Transmitters | ||
|---|---|---|
| XTP T HD 4K | 4K HDMI Transmitter | |
| XTP T HWP 101 4K | 4K HDMI Transmitter – Decorator-Style Wallplate | |
| XTP T UWP 202 4K | Two Input 4K Transmitter – Decorator-Style Wallplate | |
| XTP T FB 202 4K | Two Input 4K Transmitter for Floor Boxes | |
| XTP T VGA | Universal VGA Transmitter | |
| XTP T EU 202 | Two Input Transmitter for EU Junction Boxes | |
| XTP T MK 202 | Two Input Transmitter for MK Junction Boxes | |
| XTP T FB 202 | Two Input XTP Transmitter for Floor Boxes | |
| Compatible Receivers | ||
|---|---|---|
| XTP SR HD 4K | 4K HDMI Scaling Receiver | |
| XTP R HD 4K | 4K HDMI Receiver | |
| XTP R HWP 201 4K | 4K HDMI Receiver with 90° Connector for Wall-Mounted Displays | |
| Compatible Control Processors | ||
|---|---|---|
| IPL Pro S1 | IP Link Pro Control Processor | |
| IPL Pro S3 | IP Link Pro Control Processor | |
| IPL Pro S6 | IP Link Pro Control Processor | |
| IPL Pro IRS8 | IP Link Pro Control Processor | |
| IPL Pro CR88 | IP Link Pro Control Processor | |
| MLC Plus 50 | MediaLink Plus Controller | |
| MLC Plus 84 D | MediaLink Plus Controller – Decorator-Style Wallplate | |
| MLC Plus 84 EU | MediaLink Plus Controller – EU Wallplate | |
| MLC Plus 84 MK | MediaLink Plus Controller – MK Wallplate | |
| MLC Plus 100 | MediaLink Plus Controller | |
| MLC Plus 100 AAP | MediaLink Plus Controller with AAP Opening | |
| MLC Plus 200 | MediaLink Plus Controller | |
| MLC Plus 200 AAP | MediaLink Plus Controller with AAP Opening | |
| Compatible User Interfaces | ||
|---|---|---|
| TLI Pro 101 | TouchLink Interface | |
| TLP Pro 300M | 3.5″ Wall Mount TouchLink Pro Touchpanel | |
| TLP Pro 320C | 3.5″ Cable Cubby TouchLink Pro Touchpanel | |
| TLP Pro 525C | 5″ Cable Cubby TouchLink Pro Touchpanel | |
| TLP Pro 525M | 5” Wall Mount TouchLink Pro Touchpanel | |
| TLP Pro 525T | 5″ Tabletop TouchLink Pro Touchpanel | |
| TLP Pro 725C | 7″ Cable Cubby TouchLink Pro Touchpanel | |
| TLP Pro 725M | 7″ Wall Mount TouchLink Pro Touchpanel | |
| TLP Pro 725T | 7″ Tabletop TouchLink Pro Touchpanel | |
| TLP Pro 1025M | 10″ Wall Mount TouchLink Pro Touchpanel | |
| TLP Pro 1025T | 10″ Tabletop TouchLink Pro Touchpanel | |
| Compatible Network Button Panels | ||
|---|---|---|
| NBP 50 | Network Button Panel with 6 Buttons – US 2-Gang | |
| NBP 100 | Network Button Panel with 6 Buttons – US 2-Gang | |
| NBP 200 | Network Button Panel with 10 Buttons – US 3-Gang | |
| NBP 105 D | Network Button Panel with 5 Buttons – Decorator-Style Wallplate | |
| NBP 106 D | Network Button Panel with 6 Buttons – Decorator-Style Wallplate | |
| NBP 108 D | Network Button Panel with 8 Buttons – Decorator-Style Wallplate | |
| NBP 110 D | Network Button Panel with 10 Buttons – Decorator-Style Wallplate | |
| NBP 1200C | Cable Cubby Enclosure with Network Button Panel | |
| Compatible Expansion Interfaces | ||
|---|---|---|
| IPL EXP S2 | Control System I/O Expansion Interface | |
| IPL EXP S5 | Control System I/O Expansion Interface | |
| IPL EXP 200 | Control System I/O Expansion Interface | |
| IPL EXP RIO8 | Control System I/O Expansion Interface | |
| Optional Accessories | ||
|---|---|---|
| CTU 45 | Universal RJ-45 Termination Tool and Die | |
| CTU RJ-45 Die | Universal RJ-45 Replacement Crimp Die | |
| XTP DTP 24 | Shielded Twisted Pair Cable for XTP Systems and DTP Systems | |
| XTP DTP 24 Coupler | Shielded RJ-45 Coupler for Extron XTP DTP Shielded Twisted Pair Cables | |
| XTP DTP 24 Plug | Shielded RJ-45 Plug Kit for Extron XTP DTP 24 Shielded Twisted Pair Cable | |
| XTP DTP 24 Punch Down Jack | Shielded RJ-45 Punch Down Jack Kit for Extron XTP DTP Shielded Twisted Pair Cables | |
